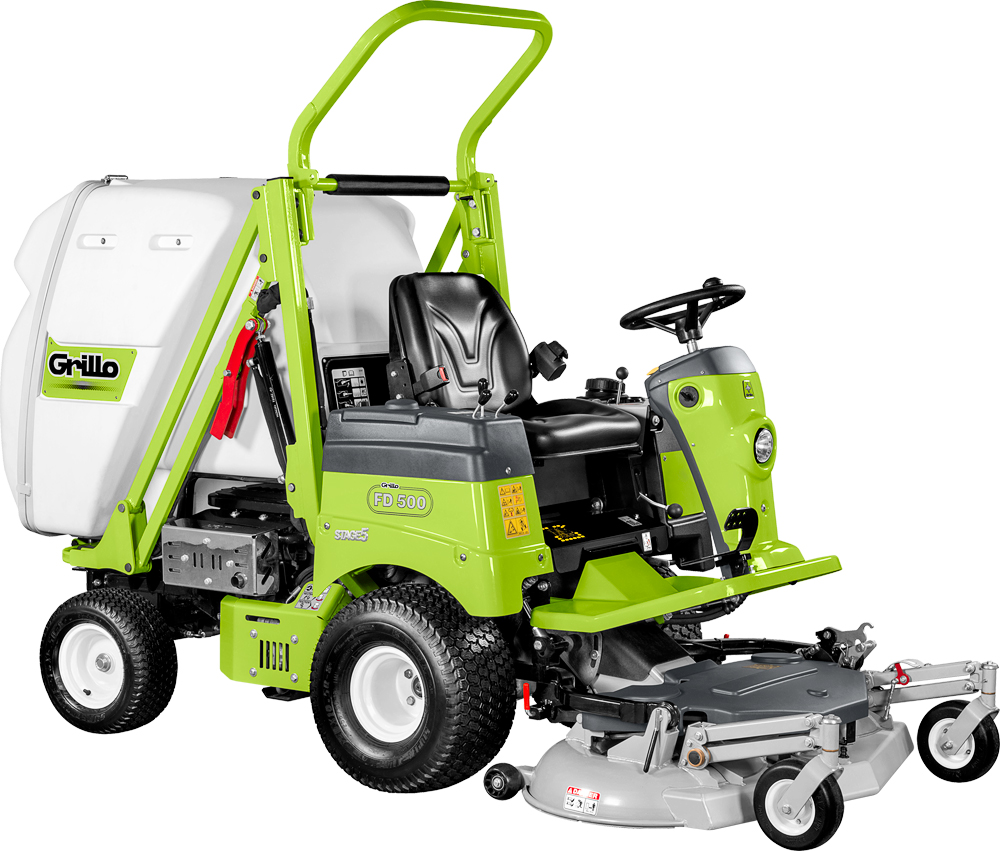

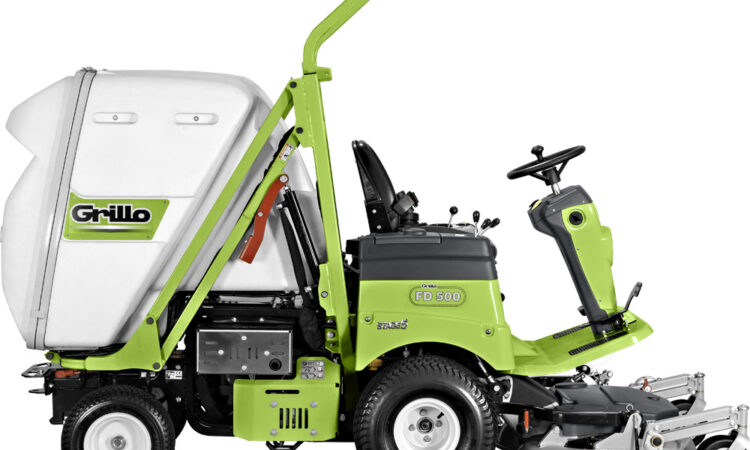

A professional hydrostatic mower with front-mounted cutter deck with a grass-catcher capacity of 700 Lt. The grass-catcher discharge height is 170 cm with an ejection of 45 cm; the cutting and high performance collection of this model are its best features.
The innovative cutting system “Grillo Overblow” allows tremendous acceleration of the grass/air flow into the discharge chute considerably increasing its collection capability, even in damp,wet conditions whilst at the same time keeping its noise level of the whole cutting/collecting system extremely low.
The front-mounted cutter deck gives the operator excellent visibility of his working area.
Technical data sheet FD 500 Stage5
Engine Kubota D722
Start electric, with 12 V battery
Supply diesel
Displacement 722 cc, 3 Cylinders
Power 18 HP (13.2 kW)
Liquid cooled with electric impeller and equipped with automatic radiator cleaning device
Cyclonic integrated air filter
Fuel tank capacity 22 L.
Hydraulic oil tank 6,7 L.
Traction hydrostatic, 2-wheel drive with cascade reduction gear, parking brake and differential.
Cutter deck Cutting deck with collection
Cutting configuration 3 blades.
Cutting width 113 cm.
Cutting height from 2.5 to 9 cm continuously variable and electric adjustment from the driver’s seat.

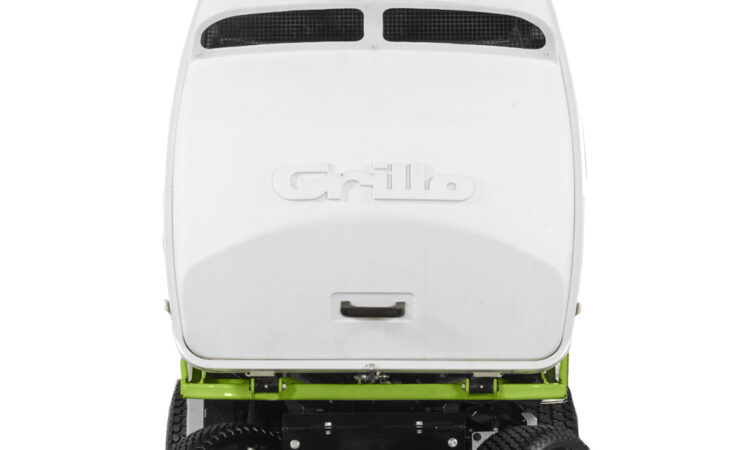

Grass collector capacity 700 L.

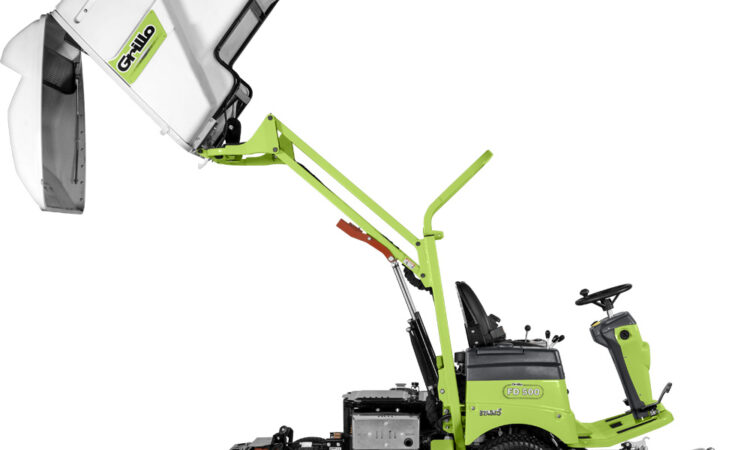

Maximal discharging height 190 cm
Rear projection 15 cm.
P.T.O. electormagnetic, with integrated blade brake.
Differential locking mechanical with pedal control

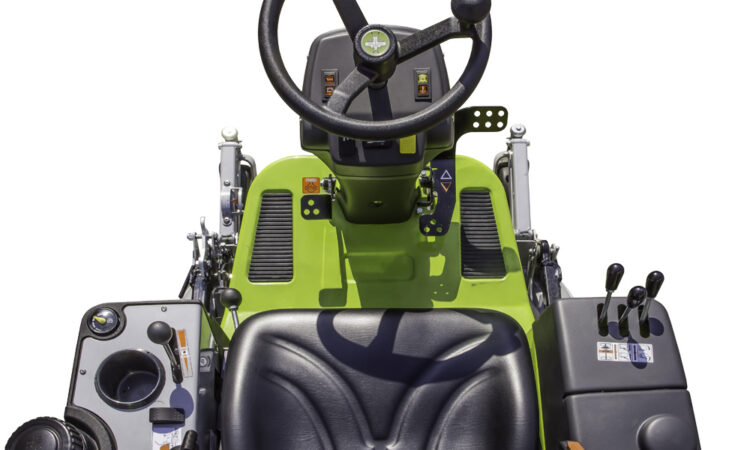

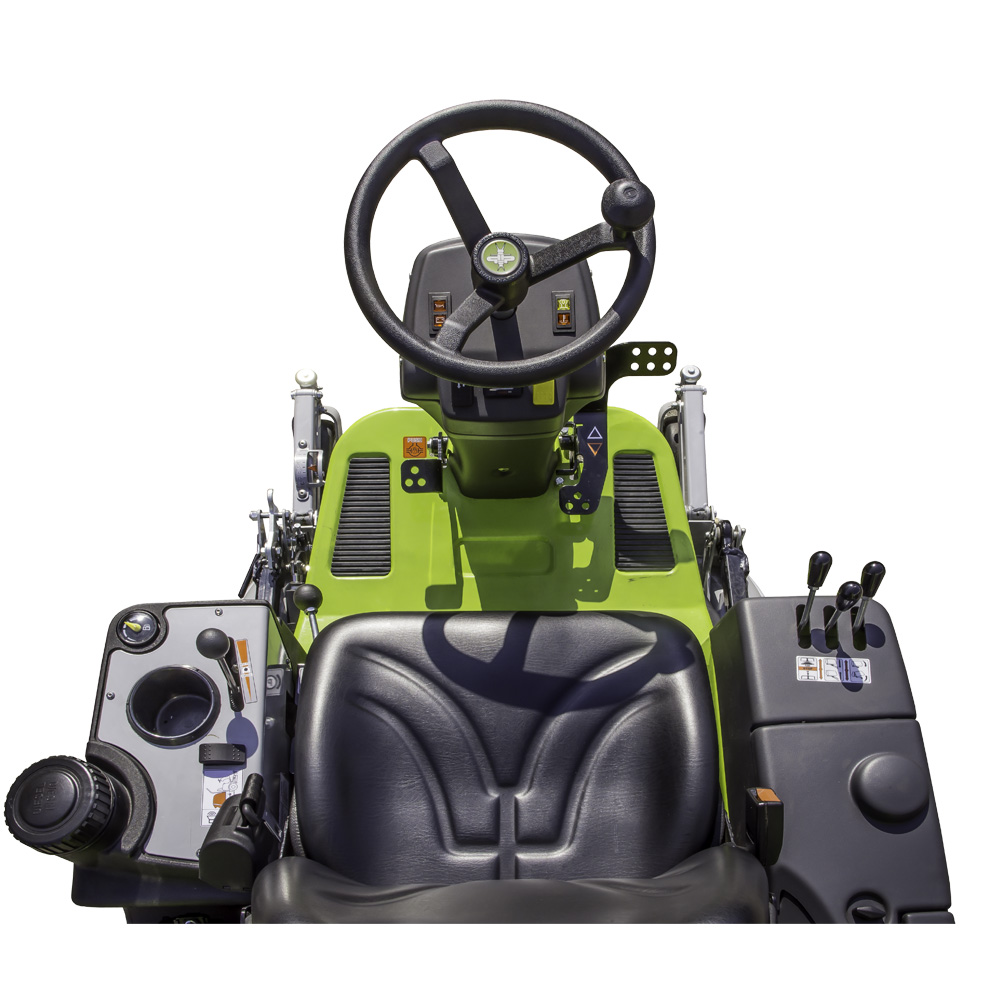

Steering system steering wheel with hydraulic drive, with pedal operated forward and reverse gears.
Speed 0-13 km/h continuously variable
Inner turning radius 32 cm
Tyres front 20×10.50-8 GARDEN; rear 16×6.50-8 GARDEN
Seat sprung and adjustable, seat belt included
Brakes parking brake, disc brake on gearbox.
